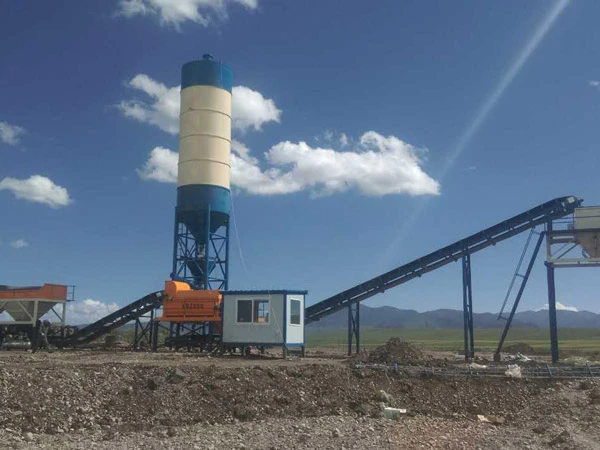

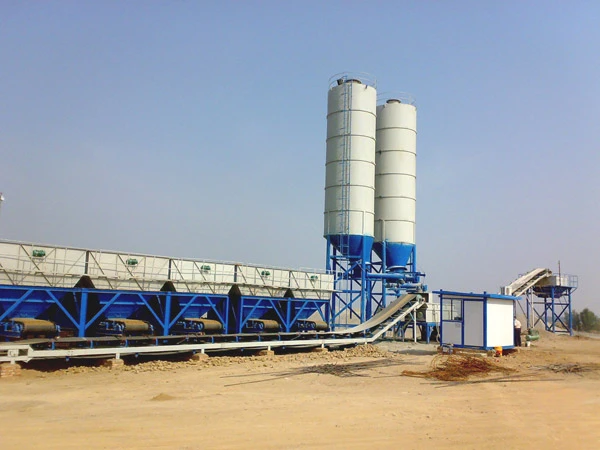

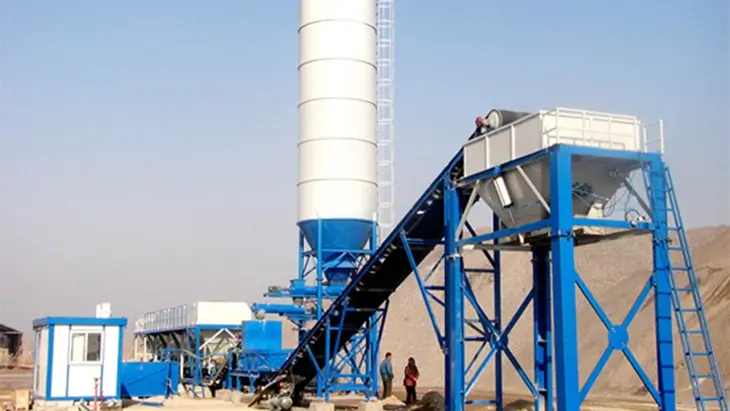

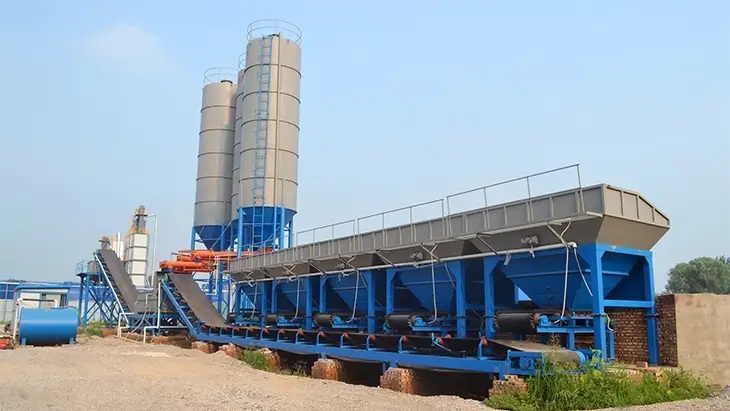

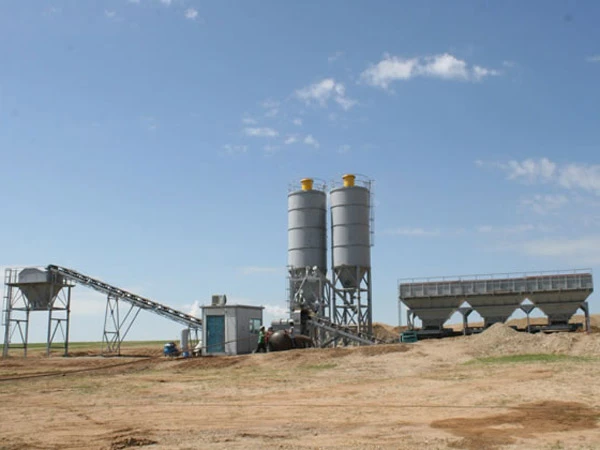

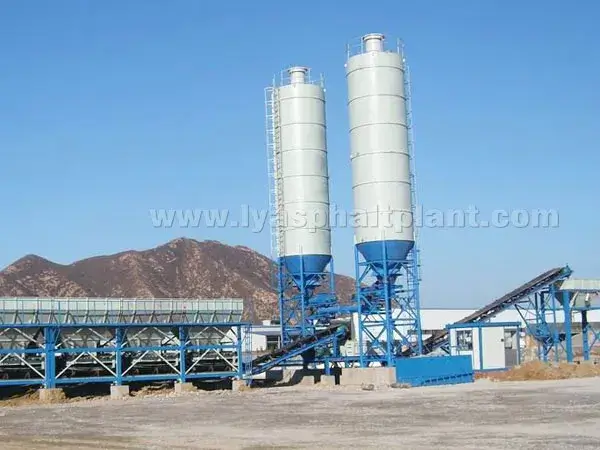

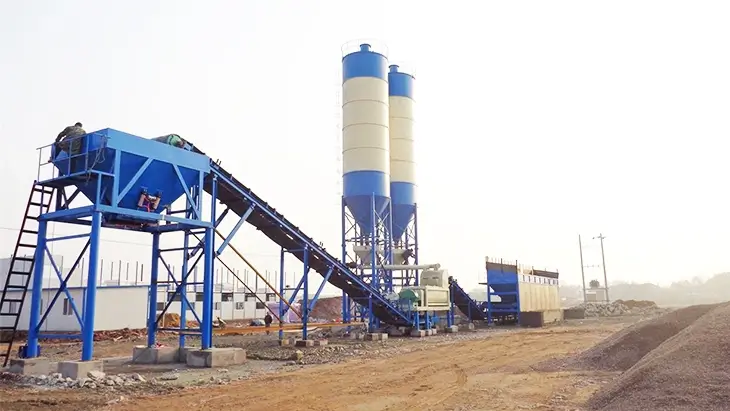

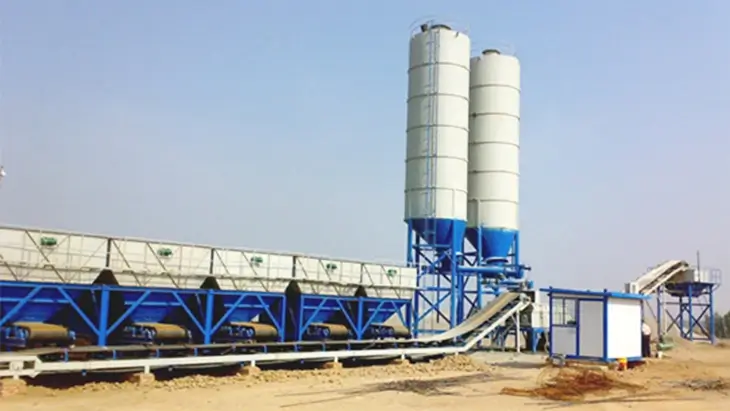

Wet Mix Macadam Plant
Wet mix macadam plants, also called WMM plants or wet mix plants, are widely used to mix different kinds of materials according to the requirements of customers. It is a production line which produces cement treated base (CTB) and stabilized soil mixture (mainly consisting of soil, cement, water and lime) for road base course construction.
- Model: WBC200 ~ WBC600
- Product Capacity: 200 t/h ~ 600 t/h
- Cement Silo Capacity: 50 t ~ 100 t
- Highlights: High mixing effects, high weighing accuracy, bad quality concrete totally avoidable
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Brief Introduction
LYROAD Machinery is a professional manufacturer to produce wet mix plants in China. WMM plant is widely used to mixing different kinds of materials according to the requirements of customers.
WBC series wet mix macadam plants are well designed to agitate various mixtures to produce a variety of stabilized soil base materials, such as cement stabilized soil, lime stabilized soil, and gravel stabilized soil. These stabilized soil base materials are widely used in high-grade highways, railways, and municipal construction.
Technical Parameters
| Model | WBC200 | WBC300 | WBC400 | WBC500 | WBC600 | |
| Capacity (T/H) | 200 | 300 | 400 | 500 | 600 | |
| Powder bin (T) | 50 | 50 | 50 | 100 | 100 | |
| Finished storage bin (m³) | 4 | 4 | 7 | 7 | 7 | |
| Diameter of aggregate | ≦45 mm | ≦45 mm | ≦45 mm | ≦60 mm | ≦60 mm | |
| Proportioning kinds | 3 | 3 | 4 | 4 | 5 | Accuracy | Aggregate | ±3% | ±3% | ±1% | ±1% | ±1% |
| Cement | ±1.5% | ±1.5% | ±1%1% | ±1% | ||
| Water | ±1.5% | ±1.5% | ±1% | ±1% | ±1% | |
| Total power | 71 kW | 88 kW | 120 kW | 140 kW | 148 kW | |
Structure of Stabilized Soil Mixing Plant
- 1. Adopts twin shaft concrete mixer with good performance as the supporting mainframe. It has the features of fast mixing speed, wide mixing scope and high mixing effects.
- 2. “Click to supplement” technology obtained the national patent has been adopted to ensure the dynamic weighing accuracy to ±1%.
- 3. The pneumatic conveying unit obtained the national patent has been used to weigh and convey additive, thus totally avoid producing bad quality concrete due to the inappropriate admixture amounts.
- 4.It is equipped with touch screen, micro computer, two sets of operation systems, three working patterns(manual operation, semi-automatic operation,automatic pattern) to make the system perform reliably.
