YLB Asphalt Batch Mix Plant

  • YLB portable asphalt plant

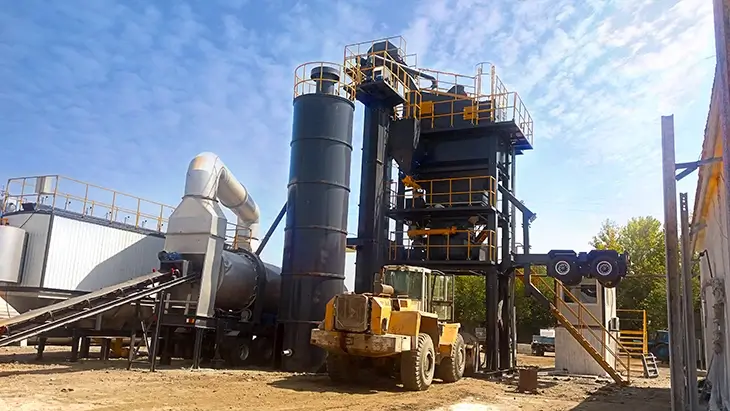

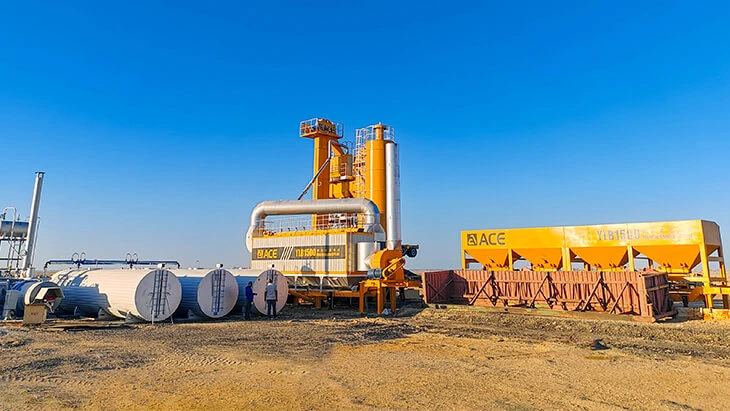

YLB Mobile Asphalt Plant

  • Model: YLB700 ~ YLB2000
  • Product Capacity: 60 t/h ~ 160 t/h
  • Mixer Capacity: 700 kg/batch ~ 2000 kg/batch
  • Highlights:
    Mobile plant,easy for installation, fast relocation;
    Batch mix, precise screening, accurate weighing.
  • Leave Message

    Brief Introduction
    YLB Series mobile asphalt mixing plant is developed, designed, manufactured and put on sale by Liaoyuan Road Construction Machinery. It inherits the advantages of LB series asphalt batch mixing plant, and adds new elements including: containerized size, modular design and trailer and mobile chassis which make it possible for container transportation, fast mobilization and relocation.
    YLB Asphalt Plant is designed for small and medium-sized pavement project which need frequent relocation. Complete plant can be dismantled and reinstalled in 5 days (not including the transportation period).
    Parameter
    Model YLB700 YLB1000 YLB1500 YLB2000
    Capacity 60 t/h 80 t/h 120 t/h 160 t/h
    Mixer Capacity

    700 kg/batch 1000 kg/batch 1500 kg/batch 2000 kg/batch
    Fuel Consumption Diesel consumption: 5.5-7 kg/ton
    Weighing Precision Hot aggregate: ±0.5%; bitumen: ±0.3%; filler: ±0.2%
    Hot Asphalt Temperature 130℃-165℃ (adjustable)
    Air Emissions ≤ 20 mg/Nm³
    Working Noise ≤ 70 db(A)
    Operation Full Auto/Manual Operation
    Installation Power 157 kW 241 kW 330 kW 412 kW
    Voltage 220V/380V-50Hz (adjustable)
    Plant Covering Area Length 35 m 40 m 40 m 42 m
    Width 26 m 28 m 32 m 32 m
    Height 15 m 15 m 16 m 16 m
    Documents Lay-Out/ Electric Circuit Diagram; Chinese-English Operation Manual; Qualification Certificate.
    Mobile Structure


    Mixing Tower Module


    Cold Feeder Module


    Bag House Dust Filter


    Drying Drum


    Mobile Chassis

    Main Features

    Drying System
    1. Adopts four sets of famous powerful direct-connected gear motors to drive the drying drum;
    2. Optimized blades make the drying process more balance with higher heat utilization rate;
    3. Drying drum is covered by thermal insulation material and stainless steel skin to avoid heat loss;
    4. Well calculated and carefully heat treated drying drum, world class bearings have long service life and stable performance.

    Dust Collecting System
    1. Double dust collecting system, European emission standards;
    2. Pulsating dust removal method, energy saving and efficient;
    3. Durable key components;
    4. Safety protection, intelligent inspection.

    Vibrating Screen
    1. Sturdy and durable, high intensity and remarkable screening effect;
    2. Screen mesh easy to maintain and replace, time saving;
    3. Frequency and amplitude perfectly matched, over 95% grading precision, competent to any severe working situation, high temperature resistance and excellent productivity;
    4. Best design to guarantee the best screening result.
    a. Adopts self-synchronizing driving technology, maintenance-free and environmental;
    b. Patent enhanced drivable bridge structure design, tough and protective for screening components;
    c. Famous vibrating motor.

    Mixing System
    1. Simulating optimization of material mixing movement speed;
    2. Ensures each batch is totally and equally mixed with 25% mixing efficiency enhancement and 20% energy consumption reduction;
    3. High productivity double-shaft mixer
