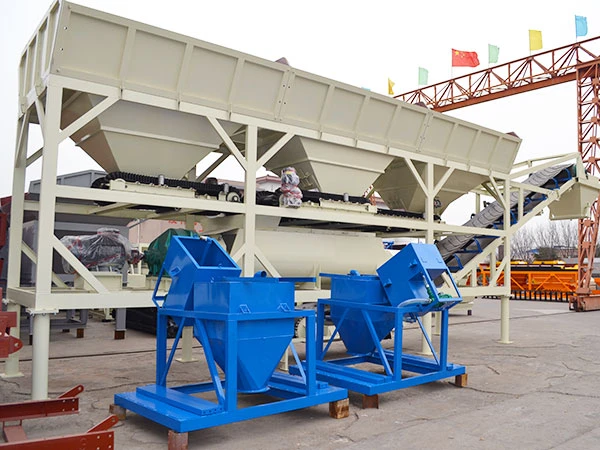

Mobile Wet Mix Macadam Plant
Mobile wet mix macadam plant (also called poratable wet mix plant) is a road construction equipment for stabilized soil production. It can produce cement treated base (CTB) and stabilized soil mixture, mainly consisting of soil, cement, water and lime, for road base course construction.
- Model: WBZ300 ~ WBZ600
- Product Capacity: 300 t/h ~ 600 t/h
- Highlights: Integraded design, compact structure, horizontal square cement silo, easy to transport, fast relocation, quite low relocation cost
ISO、CE、EAC
12-month Warranty
L/C Accepted
7*24H Response
Brief Introduction
WBZ Series mobile WMM plant is a road construction equipment for stabilized soil production. WBZ mobile wet mix plant adopts horizontal square cement silo,compact design and integrated structure.
Feeder, mixer, belt conveyor and finish storage bin are integrated in one module which can be transported by a lowbed semi-trailer, therefore, it is quite easy for relocation and suitable for road construction projects that need frequent site relocation.
Technical Parameters
Model | WBZ300 | WBZ400 | WBZ500 | WBZ600 | |
Capacity (t/h) | 300 | 400 | 500 | 600 | |
Feeder Capacity | 3 x 5m³ | 3 x 5m³ | 3 x 6m³ | 3 x 6m³ | |
Cement Silo Capacity (t) | 100 | 100 | 100 | 100 | |
Finish Bin Capacity (m³) | 2 | 2 | 2 | 2 | |
Weighing Accuracy | Aggregate | ±2% | ±2% | ±2% | ±2% |
Cement | ±1% | ±1% | ±1% | ±1% | |
Water | ±2% | ±2% | ±2% | ±2% |
Structure of Mobile Wet Mix Macadam Plant

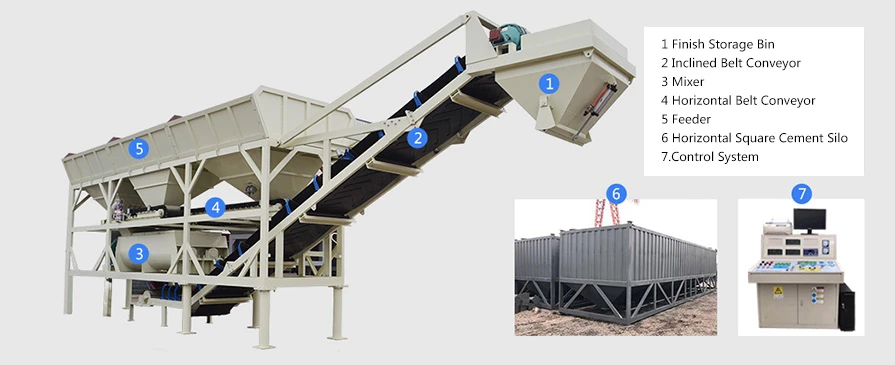

Components of Mobile Wet Mix Macadam Plant

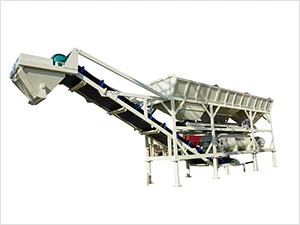

1. Integrated Compact Structure
① Integrated structure, quite easy for shipment, installation, transportation and relocation;
② Feeder, mixer, belt conveyors and finish storage bin are integrated in one module which can be loaded and transported by a lowbed semitrailer;
③ Control room and cement silo can be loaded and transported by another semi-trailer.

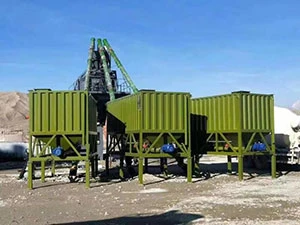

2. Horizontal Cement Storag Silo
① Horizontal Square Cement Silo which can be placed on ground directly;
② Can be loaded on a lowbed semi-trailer, very convenient for transportation and relocation;
③ Lower gravity center, resistant to strong wind and earthquake, steadier and safer.

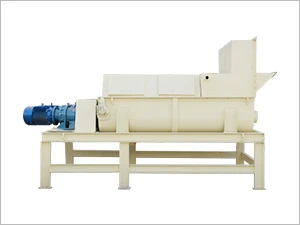

3. Efficient Twin Shaft Mixer
① Twin shaft mixer,higher mixer efficient, uniform mixing performance;
② Large productivity;
③ Sturdy and durable, convenient for maintenance and parts replacement.

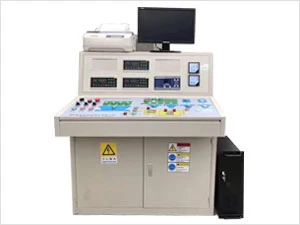

4. Control System
① PLC control system, easy to operate;
② Automatic control, labor-saving;
③ Various type control room available for client's option.

5. Sound After-sale Service
① Reliable quality, stable performance, 1year warranty;

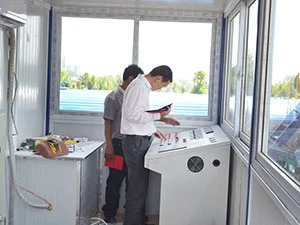

② On site installation guide and operator training;
③ Fast spare parts delivery.

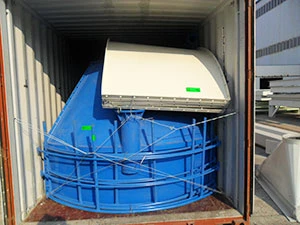

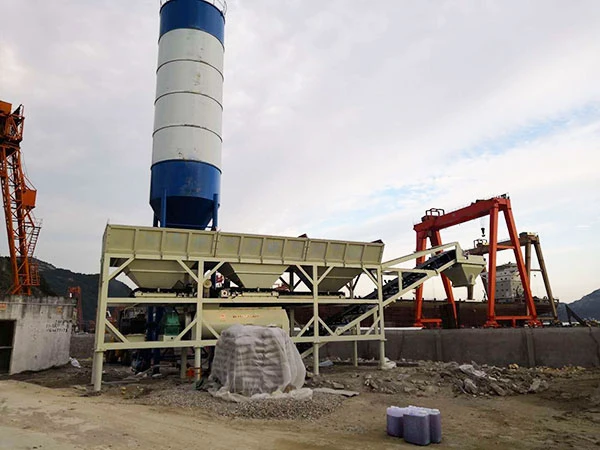

6. Detachable Cement Silo
① Detachable cement silo available for your option;
② Convenient for container transportation, reducing shipment cost to a large degree;
③ Fast assembly on site.
