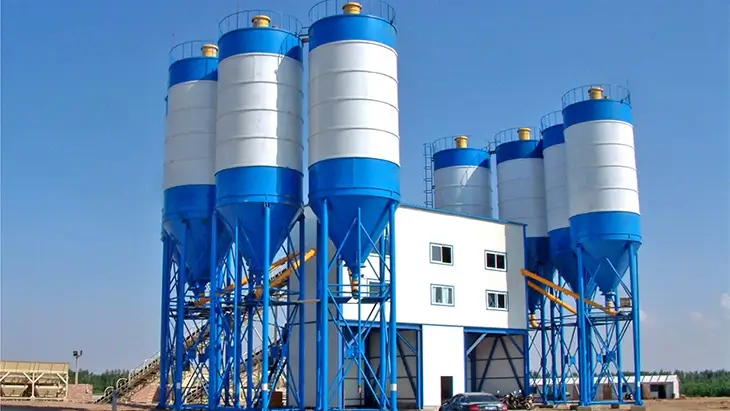

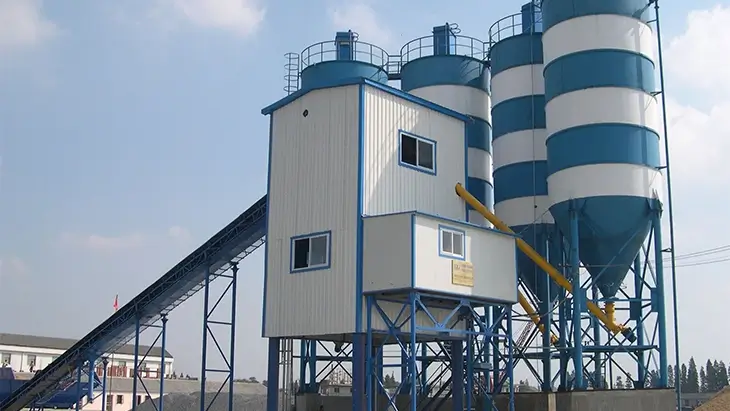

Belt Conveyor Concrete Mixing Plant
- Model: HZS60 ~ HZS150
- Product Capacity: 60 m³/h ~ 150 m³/h
- Total Installed Power: 105 kW ~ 260 kW
1. Planetary gear driving system is able to keep the gimbals and transmission shaft rotate at the same speed.
2. High mixing efficiency with the spiral mixing system
3. The working life is prolonged because high rigidity and high tenacity wearable case alloy steel is applied to the scale board and mixing blades.
4. It is reliable and easy to operate because the aggregate lifting appliance adopts frequency control.
Introduction of Belt Conveyor Concrete Mixing Plant
On the basis of combining the advanced technology of mixing tower and mixing station at home and abroad, HZS belt conveyor concrete mixing plant has been developed and produced to manufacture plastic concrete, dry hard concrete, etc. HZS belt conveyor concrete mixing plant is widely applied in big or medium building projects, road and bridges projects, precast concrete plants, etc. HZS belt conveyor concrete mixing plant is an ideal choice for producing commercial concrete and large scale precast concrete for customers.
Main Parameters of Belt Conveyor Concrete Mixing Plant
| Entire Plant | Model | HZS60 | HZS90 | HZS120 | HZS150 |
| Capacity (m3/h) | 60 | 90 | 120 | 150 | |
| Standard Discharging Height (mm) | 3800 | 3800 | 4000 | 4000 | |
| Operation Cycle Time (s) | 60 | 60 | 60 | 60 | |
| Max Aggregate Size (mm) | 60/80 | 60/80 | 60/80 | 60/80 | |
| Total Installed Power(kW) | 105 | 145 | 210 | 260 | |
| Total Weight (T) | 50 | 60 | 80 | 100 | |
| Size (m) (L×W×H) |
28.5×10.6×18.8 | 58.6×12.4×18.8 | 60.2×13.7×18.8 | 43.6×24.0×18.8 | |
| Mixing System | Mixer | JS1000 | JS1500 | JS2000 | JS3000 |
| Mixing Motor (kw) | 2×18.5 | 2×30 | 2×37 | 2×55 | |
| Batching System | Batching Machine | PLD1600 | PLD2400 | PLD3200 | PLD4800 |
| Capacity of Storage Hopper (m3) | 4×5 | 4×10 | 4×18 | 4×25 | |
| Weight System | Aggregate Weighing Precision (%) | ±2 | ±2 | ±2 | ±2 |
| Cement Weighing Precision (%) | ±1 | ±1 | ±1 | ±1 | |
| Water Weighing Precision (%) | ±1 | ±1 | ±1 | ±1 | |
| Additive weighing Precision (%) | ±1 | ±1 | ±1 | ±1 |
Features of Belt Conveyor Concrete Mixing Plant
1. Planetary gear driving system is able to keep the gimbals and transmission shaft rotate at the same speed.
2. High mixing efficiency with the spiral mixing system
3. The working life is prolonged because high rigidity and high tenacity wearable case alloy steel is applied to the scale board and mixing blades.
4. It is reliable and easy to operate because the aggregate lifting appliance adopts frequency control.
5. Lubrication system adopts advanced centralized oil lubricating system to supply oil. In addition, it is more safe and reliable with the equipment of overvoltage warning and low oil level warning.
6. Precise weighing system ensures it can meet the various requirements of high performance concrete production.
Delivery Photos of Belt Conveyor Concrete Mixing Plant
