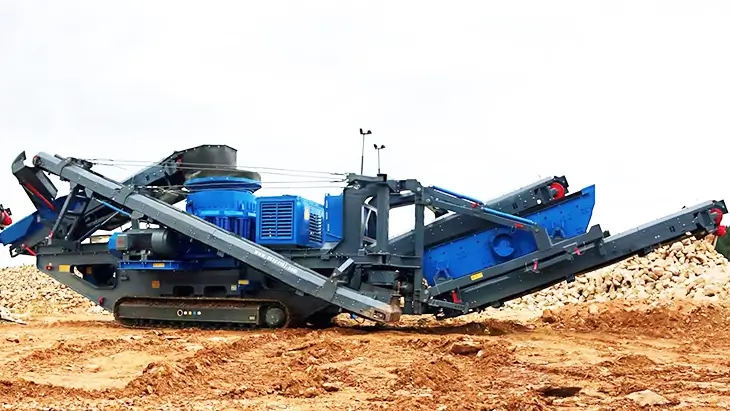

Mobile Crawler Cone Crusher

AMC300 mobile crawler cone crushing plant adopts a multi-cylinder hydraulic cone crusher. It has higher rotation speed and stroke, which greatly improves the rated power and throughput; Owns large crushing ratio and high production efficiency. The output is 35%-60% higher than that of the old spring cone crusher. It is the preferred equipment for secondary crushing of various high-hardness and highly abrasive rock minerals.

  • Model: AMC300
  • Product Capacity: 100t/h ~ 300t/h
  • Highlights: 1. Crawler Type; 2. Highly Mobile; 3. Hydraulic Powered and Stable Performance
  • iconISO、CE、EAC
  • icon12-month Warranty
  • iconL/C Accepted
  • icon7*24H Response
Get Price

Brief Introduction

AMC Series, equipped with multi-cylinder hydraulic cone crusher, is track-mounted mobile crushing machine which works independently or associates with other mobile crushing equipment of our company. AMC mobile crawler cone crusher is featured by intelligent control, high mobility and stable performance, ideal for secondary crushing of rocks with hardness around 150MPa.

AMC mobile crawler cone crushers are mainly used for aggregate and sand and other production, mining, metallurgy, quarry, construction waste crushing and the like. The cone crusher is multi-cylinder hydraulic type which crush materials with compressive strength about 150Mpa. AMC mobile cone crusher is mainly used for secondary crushing.

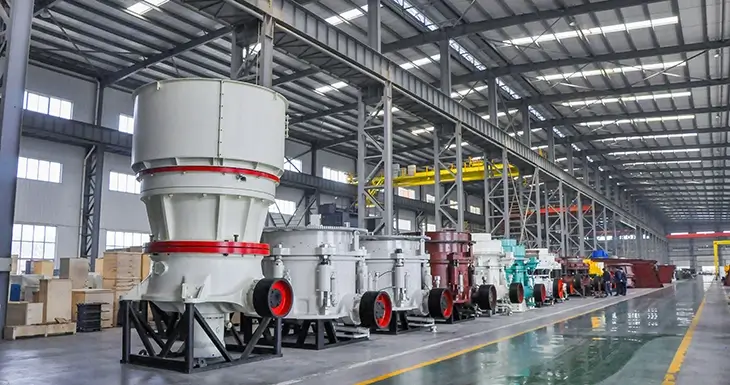

Core part of stone crushing plant

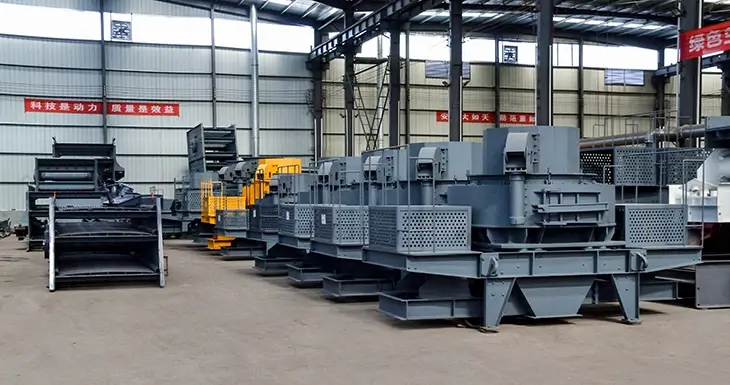

All types of stone crushers

Technical Parameters

Model AMC300
Crusher
Crusher MH300
Feeding Port 1060
Max. Feed Size(mm) 240
Crusher Weight(t) 18
Adjustment Range of the Discharge Port 10-45
Oil Station Power (kW) 7.5*2
Oil Fan (kW) 2.2
Crusher Power (kW) 250kW-4
Feeding Belt Conveyor
Conveyor Belt Unfold Width(mm) B1000
Feed Height (mm) 2900
Power (kW) 7.5
Bucket Capacity (m3) 3
Main Belt Conveyor
Width(mm) B1000
Power (kW) 7.5*2
Discharging Height (mm) 3300
Overview
Generator Set Power (kW) 400kW
Crawler Chassis DL375
Track Drive Power (kW) 55kW
Total Weight (t) 55
Processing Capacity (t/h) 100-300
Total Operating Power (kW) 289.7
Operating Dimensions (L*W*H/mm) 14800×3800×4450
Transport Dimensions (L*W*H/mm) 15300×3200×3750

Main Features of Track-mounted Cone Crusher

  • 1. Compacted and integrated structure with Strickland track for movement, convenient for mobilization in working site.
  • 2. The whole machine can climb onto a lowbed semitrailer all by itself for long distance transportation. It doesn’t require cranes, break up, re-assemble or foundations.Fast and easy relocation with extremely low costs.
  • 3. The main machine is multi-cylinder hydraulic cone crusher which is outsourced from China top manufacturer. Reliable quality, stable performance, longer service life.
  • 4. Intelligent control, travel track controlled by a hand-hold controller. Operation can be conducted in a central control room. Whole production process is under automation control, labor-saving, efficient and safe.
  • 5. The crawler mobile cone crusher can works together with our other mobile crushing equipment, such as crawler impact crusher, crawler jaw crusher and crawler vibrating screen, to carry out types of crushing production.
  • 6. World famous key devices are employed, Schneider electrical elements, Cummins diesel engine, Eaton hydraulic plunger pump, Strickland track, Bonfiglioli /Brevini hydraulic motor. Performance, service life and value of the crusher is guaranteed.

Mobile Crawler Cone Crusher Main Components

feeding unit for mobile impact crusher plant for sale

1. Feeding Unit

① Foldable.
② Self-locking.
③ Simple and fast loading.
④ Safe initial operation.

access hole on electric impact crusher plant

2. Manhole

① Easy to observe and operate for all components.
② Easy to maintain and clean.

control system on electric impact crusher plant

3. Cone Crusher

① OEM from China top manufacturer.
② Quality and performance guaranteed.

return screen electric impact crusher plant

4. Return Screen

Bring oversized grains back to the feeding unit and make them crushed again.

maintenance platform on mobile impact crusher plant

5. Maintenance Platform

A platform is provided to help gain access to the crusher and the powerpack, and do inspection and maintenance work.

motorized pulley on mobile impact crusher plant

6. Belt Conveyor

Integrated belt conveyor, folding, hydraulic control.

remote-control-handle on mobile impact crusher plant

7. Remote Controller

All components and functions can be controlled easily via this hand-hold remote controller.

crawler of Mobile impact crusher plant

8. STRICKLAND Track

① British STRICKLAND track.
② Sturdy, stable and durable.
③ Allow equipment to move flexibly at the jobsite.

Construction Cases

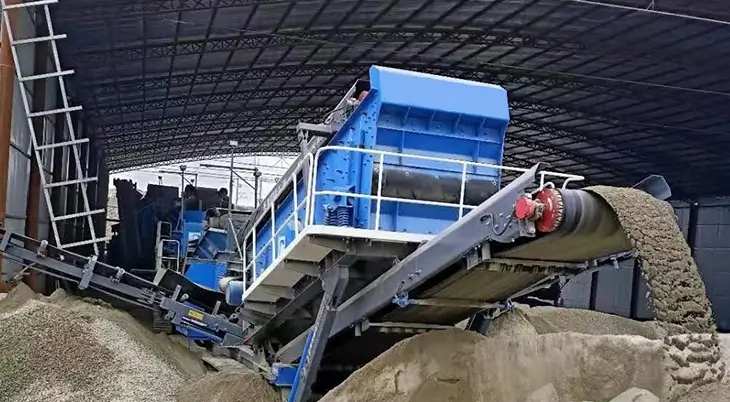

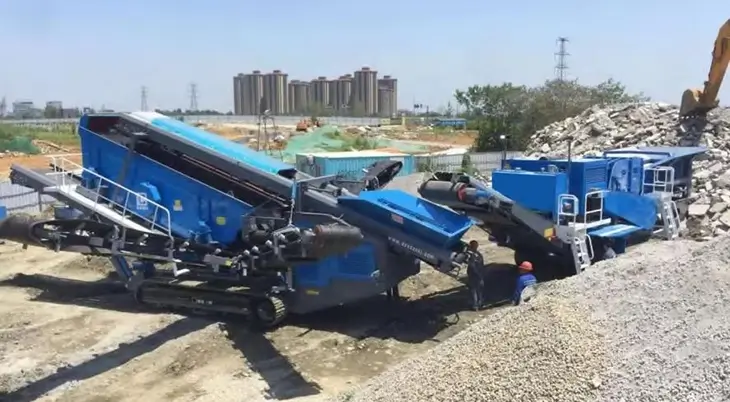

Crawler Impact Crusher Plant AMI1213 + Crawler Mobile Screening Plant AM3600H, Mainly process concrete blocks, output more than 100m³/h
Crawler Impact Crusher Plant AMI1213 +Crawler Mobile Screening Plant AM3600H , Mainly Process Concrete Blocks, Output More Than 100m³/h

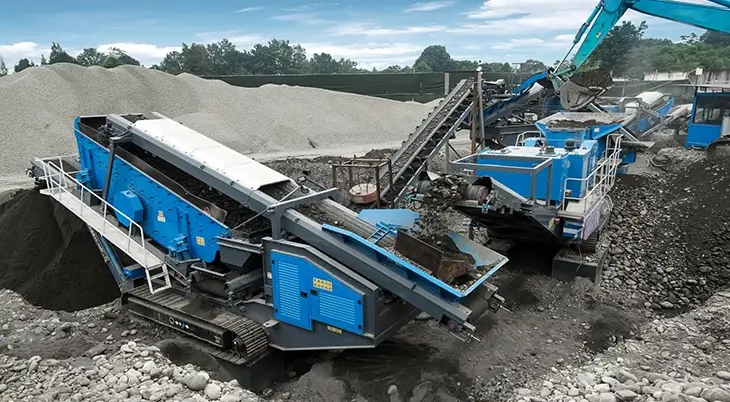

Crawler Impact Crusher PlantA AMI1213-A + Crawler Mobile Screening Plant AM3600H, A classic combination, 200t/h pebble processing capacity
Crawler Impact Crusher Plant AMI1213-A + Crawler Mobile Screening Plant AM3600H, A Classic Combination, 200t/h Pebble Processing Capacity

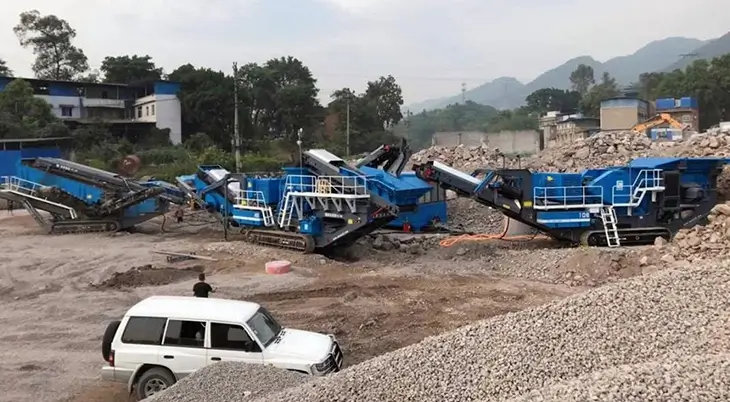

Fully Hydranlic Crawler Cone Crusher Plant AMC300 + Crawler Mobile Screening Plant AM3600H, A Most Preferred Combination
Fully Hydraulic Crawler Cone Crusher Plant AMC300 + Crawler Mobile Screening Plant AM3600H, A Most Preferred Combination With Strong Processing Performance
A Combination Consisting Of Crawler Cone Crusher Plant and Crawler Mobile Screening Plant
A Combination Consisting Of Crawler Cone Crusher Plant and Crawler Mobile Screening Plant, 120t/h Pebble Processing Capacity
