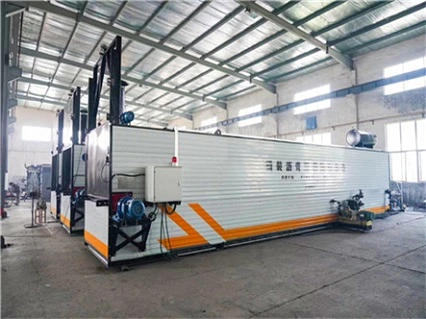

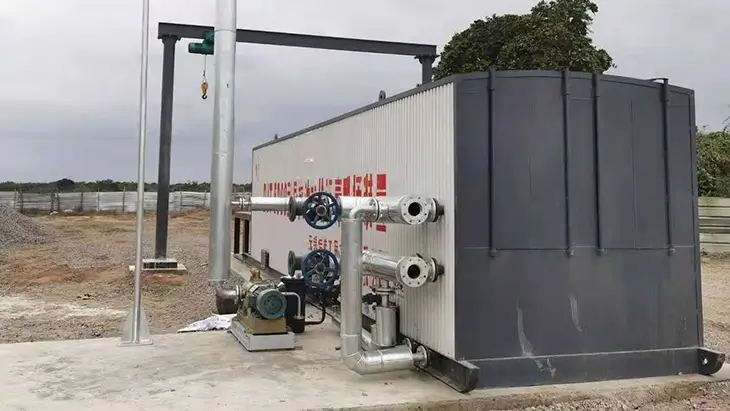

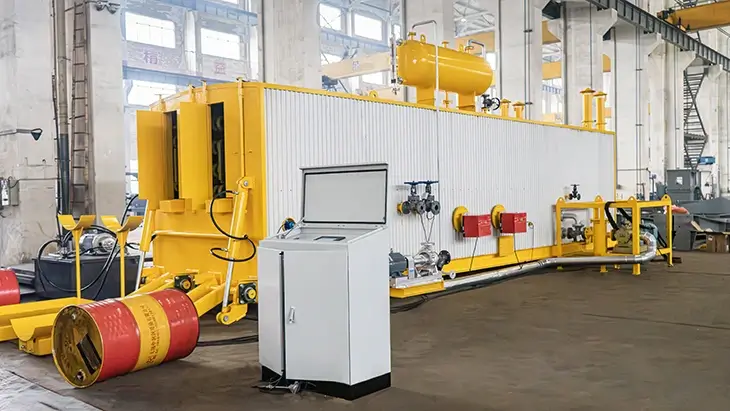

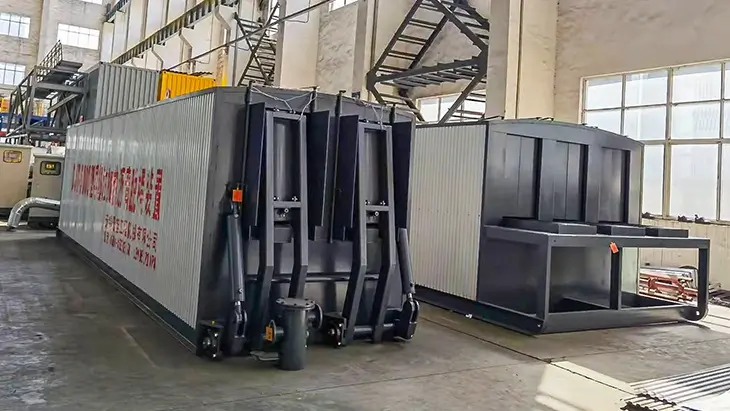

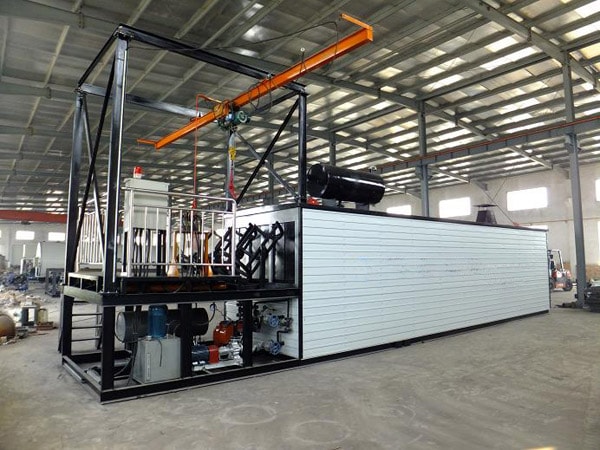

Bitumen melting machines

Bitumen Melting Machines

  • Model: DT-4 ~ DT-8, YDT-4 ~ YDT-8
  • Product Capacity: 4-6 t/h ~ 8-10 t/h
  • Total Power: 17 kw ~ 36 kw
  • The job of bitumen melting equipments is to extract the solid bitumen by melting method usually from the barrels, bags, and wooden cases. Then the liquid bitumen will work for asphalt mixing equipments and other industrial purpose.The Bitumen melting machine is perfectly designed, safe, reliable and easy to operate. The low energy consumption and environmental pollution makes it the first choice of asphalt melting equipment.

    Leave Message


    Main Parameters of Split Type Drummed Bitumen Melter
    Model DT-4 DT-6 DT-8
    Capacity 4-6t/h 6-8t/h 8-10t/h
    Melting Type Continuous Continuous Continuous
    Structure Integrated Integrated Integrated
    Bitumen Temperature 120-140℃ 120-140℃ 120-140℃
    Bitumen Storage Capacity 11m3 17m3 27m3
    Quantity of Barrels/Cycle 18 or 20units 28 or 32units 42 or 48units
    Hot Capacity of Transfer Oil Heater 400,000Kcal/h 600,000Kcal/h 800,000Kcal/h
    Transfer Oil Temperature 200-240℃ 200-240℃ 200-240℃
    Total Power 26kw 34kw 36kw
    Weight 15t 20t 24t
    Hot Oil System Dimensions 5500x1800x2000mm 7000x2200x2100mm 7000x2200x2200mm
    Bitumen Melter Dimensions 9000x2100x2550mm 12000x2100x2550mm 12000x2500x2550mm
    Main Parameters of Integrated Type Drummed Bitumen Melter (Patented Product)
    Model YDT-4 YDT-6 YDT-8
    Capacity 4-6t/h 6-8t/h 8-10t/h
    Melting Type Continuous Continuous Continuous
    Structure Integrated Integrated Integrated
    Bitumen Temperature 120-140℃ 120-140℃ 120-140℃
    Bitumen Storage Capacity 9.5m3 15m3 24.5m3
    Quantity of Barrels/Cycle 18 or 20units 28 or 32units 42 or 48units
    Hot Capacity of Transfer Oil Heater 400,000Kcal/h 600,000Kcal/h 800,000Kcal/h
    Transfer Oil Temperature 200-240℃ 200-240℃ 200-240℃
    Total Power 17kw 17kw 19kw
    Weight 11t 14t 16t
    Dimensions 9000x2100x2550mm 12000x2100x2550mm 12000x2500x2550mm
    Main Features of Bitumen Melting Machines
    1. It utilizs both burning air and oil heating pipe to melt the bitumen, more beneficial for clients.
    2. Thermal oil furnace inside the main body, small, flexible and easy to operate.thermal oil furnace.
    3. The equipement is given the ability to turn over the barrel, no need to do it yourself.
    4. Releases no air pollution, processing part is well protected and sealed.
    5. Auto temp-control and bitumen leveling system makes it smart.
    6. Low requirement and cost on the transportation, because it's excellent structure.
    7. Install it anywhere you want, leave your excavator away, it's very simple.
    8. Famous burner brand makes it more trustworthy.
    9. Longer service life.
    Working Principle of Bitumen Melting Machines

    The working principle of asphalt melting machine: the hot oil flows into the melter to heat the melting room. Then the asphalt barrels (covers removed by operators) were packed in the cart upside down, and cart starts running. Close the door once the cart goes in to avoid heat loss. Asphalt starts to take off from the bucket and fells into the heating trough (the bottom); when the trough is full (in order to ensure the speed, you must keep pumping the asphalt oil from stem to stern), the bitumen pumps will start so the asphalt can be discharged, when all the bitumen fell off the barrels, you can refill the cart regardless of whether the asphalt heating trough is empty.

    Installation and Precautions of Bitumen Melting Machines

    1. Select the best location based on the site environment; lay the foundation according to the drawing. Notice that the cart trail must be in strict accordance with the basis of a predetermined angle in the drawing, so the cart can go smoothly into the Melting Machine.
    2. Before use, inspect the whole equipment first, including the pipes, valves, etc. Then you can start the machine while ensure the necessary preheating procedure. Once the melting room reaches 150 ℃, you can do the rest work.
    3. In order to ensure the melting speed, you need to keep the heating trough clean to ensure that the outlet tube is smooth.
    4. To maintain the performance of the furnace and components, clean and paint the surface each year is necessary.
    5. Observe the heat exhaust pipe frequently, immediately handle it when you find leak or anything.

    Types
    I. Barrelled bitumen melting machine (Used to melting the bitumen which packed by barrels)
    A. Split type barrelled bitumen melter DT series
    B. Integrated type bdrummed bitumen melter YDT series
    II.Bagged bitumen melting machine (Used to melting the bitumen which packed by bags)
    III. Bitumen block melting machine (Used to melting the bitumen which packed by wooden box or others)
