RLB Asphalt Recycling Plant

Asphalt recycling plant RLB series is well-designed to combine reclaimed asphalt pavement (RAP), hot fresh aggregate and filler to produce a new finished mixture that can be used for driveways, roadway, and parking lot repairs. Optimized drying drum, high performance burner and full automatic control enable 100% RAP to be reused. Energy saving, Cost-efficient, Eco-friendly.

  • Model: RLB60 ~ RLB160
  • RAP Process Capacity: 60 t/h ~ 160 t/h
  • RAP Proportion: 30% ~ 50%
  • Highlights: Saving fuel, no aging RAP, RAP proportion up to 50%
  • iconISO、CE、EAC
  • icon12-month Warranty
  • iconL/C Accepted
  • icon7*24H Response
Get Price

Brief Introduction

RLB Series adds hot recycled equipment to LB Series; by using hot recycling technology, recycled old mixtures (RAP) are conveyed into the mixer and mixed with aggregate and filler to produce new finished mixture with good quality. RLB Series can fully make use of old mixtures, save fuel and material, reduce pollution and waste, bring better economic and environmental benefits for clients.

Technical Parameters

Model RLB60 RLB80 RLB120 RLB160
RAP processing capacity 60 t/h 80 t/h 120 t/h 160 t/h
Fuel Consumption Coal: 13~15 kg/t; Diesel: 6~8 kg/t
Weighing Accuracy Dynamic: ±2.5%; Static: ±0.5%
Installed Power (RAP equipment) 130 kW 170 kW 230 kW 280 kW
Matched asphalt plant and max. RAP proportion LB1200 50% / / /
LB1500 40% / / /
LB2000 30% 50% / /
LB3000 / 33% 50% /
LB4000 / 25% 37% 50%

Main Features of Hot Recycled Asphalt Plants

  • 1. Saving fuel: high performance burner, full combustion; optimized drying drum, hot air recycled before exhaust, higher heat utilization rate;
  • 2. Minimal pollutants: asphalt fumes and harmful gas recycled into drying drum and burn again, reducing harmful fume emission; multi-stage dust collecting system, reducing dust emission;
  • 3. Full automatic control by the computer on the air flow through the control of the dampers and the temperature monitoring by the thermometer at various positions, bringing the recycled material to the ideal temperature for the mixing with the virgin material; avoiding aging or burning RAP;
  • 4. Recycled asphalt proportion reaches up to 50%.

Detailed Information

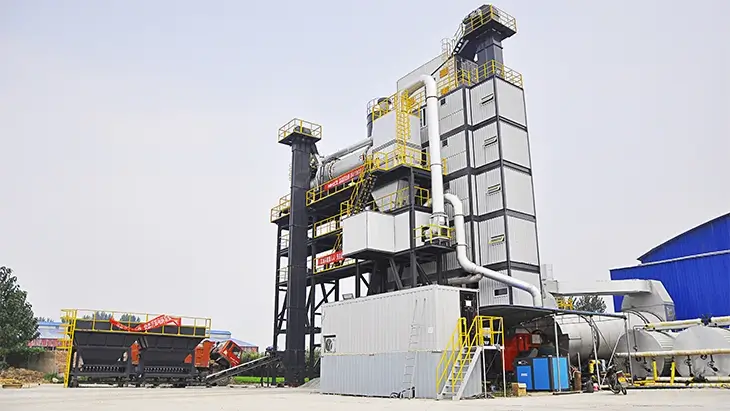

RAP processing unit of asphalt mixing plant
Front: RAP processing unit
RAP feeder of asphalt mixing plant
RAP feeder

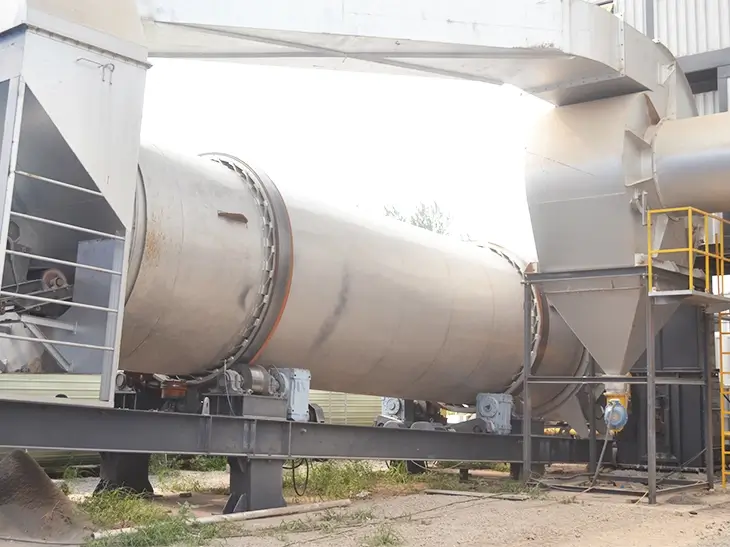

RAP drying drum of our asphalt recycling plants
RAP drying drum
RAP virginal aggregate drying drum of our asphalt recycling plants
Virgin aggregate drying drum
