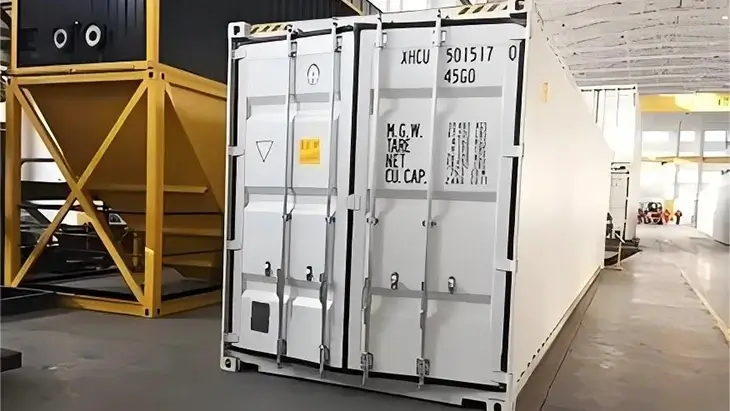

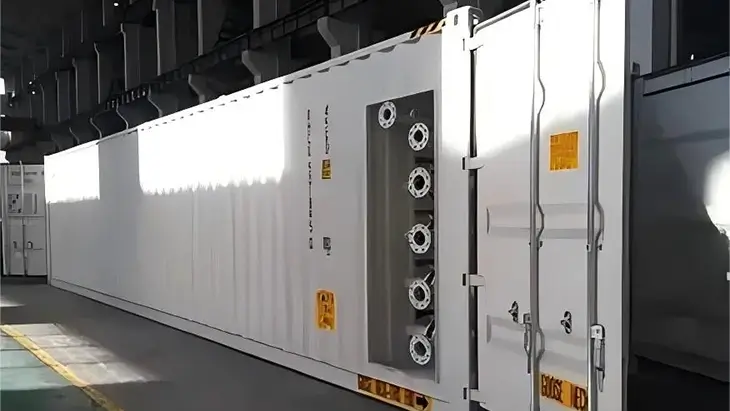

Containerized Bitumen Tank
Containerized bitumen tank is a specialized storage and transportation container designed for bitumen. The containerization aspect offers several advantages. It provides a more convenient and efficient way to move bitumen from one location to another, as it can be easily loaded onto trucks, trains, or ships.
- Model: 20GP & 40HQ
- Capacity: 20 & 40m³
- Highlights: 1. Containerized design; 2. High transport efficiency and low cost; 3. Strong versatility and high safety; 4. Excellent insulation performance and wide applicability
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Brief Introduction

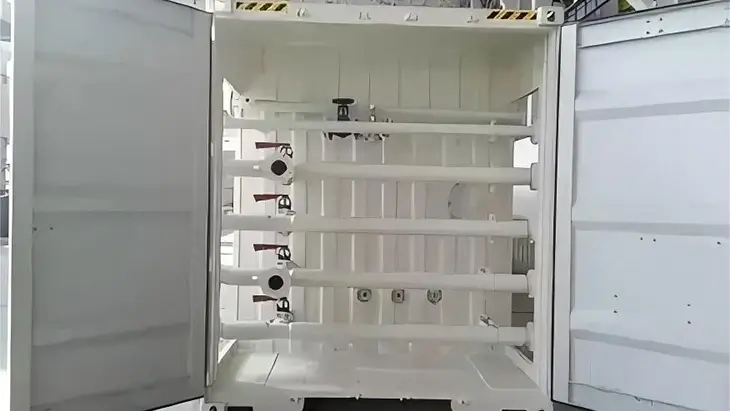

Containerized bitumen tank is a specialized equipment designed for the storage and transportation of bitumen. It consists of a steel tank and a frame, with the frame adhering to the container size requirements set by the International Organization for Standardization (ISO). The tank is typically constructed from carbon steel or stainless steel and is coated with a corrosion-resistant layer. It is equipped with heating, insulation, and loading/unloading systems. Widely used in road construction, repairs, and various projects related to asphalt, it proves to be an efficient and reliable solution in the asphalt industry.
The containerized design also helps in reducing spillage and leakage risks, ensuring environmental safety. Additionally, these tanks are often equipped with features such as insulation to maintain the proper temperature of the bitumen and prevent solidification or degradation.
Technical Parameters
| Model | 20GP | 40HQ |
|---|---|---|
| Maximum Volume (m³) | 29 | 55 |
| Dimensions (mm) | 6058*2438*2591 | 12192*2438*2896 |
| Insulation Material | Rock Wool | Rock Wool |
| Insulation Thickness (mm) | 50 | 100 |
| Weight (kg) | 6500 | 9500 |
| Heating Method | Direct Heating, Electric Heating, Thermal Oil Heating | |
| Standard Accessories: | ||
| Level Indicator | Mechanical/Electronic | Mechanical/Electronic |
| Thermometer | Mechanical/Electronic | Mechanical/Electronic |
| Ladder | Available | Available |
| Platform | Not Available | Not Available |
| Manhole | Available | Available |
| Pre-assembled Pipeline | As Required | As Required |
| Valves and Accessories | As Required | As Required |
| Optional Accessories: | ||
| Mixer | ||
| *More models can be customized according to user requirements. | ||
Main Features of Our Containerized Bitumen Tanks
1. Containerized Structure
Its appearance and structure resemble standard shipping containers, typically constructed from steel. The structure is robust, suitable for both land and sea transportation. The interior of the tank is often made of corrosion-resistant materials to ensure long-term durability.
2. Flexibility in Capacity
The capacity of the containerized bitumen tank can be customized according to requirements, usually available in various specifications and sizes. This flexibility is beneficial for meeting the bitumen storage needs of different construction sites and projects.
3. Heating System
To address the issue of high viscosity in bitumen at low temperatures, the containerized bitumen tank is equipped with an efficient heating system. This is primarily achieved through methods such as direct heating, thermal oil heating, or electric heating, ensuring that the bitumen maintains proper fluidity during storage and transportation.
4. Insulation Design
In order to prevent bitumen from solidifying due to temperature drops during transportation, containerized bitumen tanks typically incorporate insulation design. This includes the use of insulation materials such as rock wool to reduce heat loss and maintain stable temperatures for the bitumen.
5. Mixing System
Some containerized bitumen tanks are also equipped with a mixing system to ensure the uniform mixing of bitumen, preventing issues related to sedimentation and uneven temperatures.
6. Safety Features
Containerized bitumen tanks are typically equipped with various safety features, including temperature sensors, pressure sensors, safety valves, etc., to ensure safe operations during storage and transportation.
7. High Transportation Efficiency
Due to its containerized form, this bitumen tank exhibits flexible transportation capabilities. It can be conveniently transported to various construction sites or destinations through different modes of transportation, including road, sea, and rail transport.
8. Environmentally Friendly and Low Carbon
Some containerized bitumen tanks designed with modern considerations also prioritize environmental factors. They utilize eco-friendly materials and technologies to reduce adverse environmental impacts, contributing to a low-carbon and environmentally sustainable solution.
