Lowest Price Horizontal Bitumen Tank

  • Durable Asphalt Storage Tank
  • Horizontal Asphalt Tank for Efficient Heating
  • Horizontal Bitumen Tank Manufacturer
  • Optimized Performance Bitumen Tank

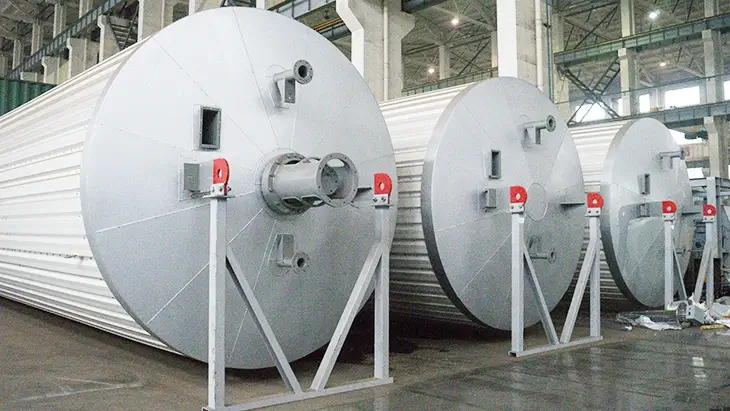

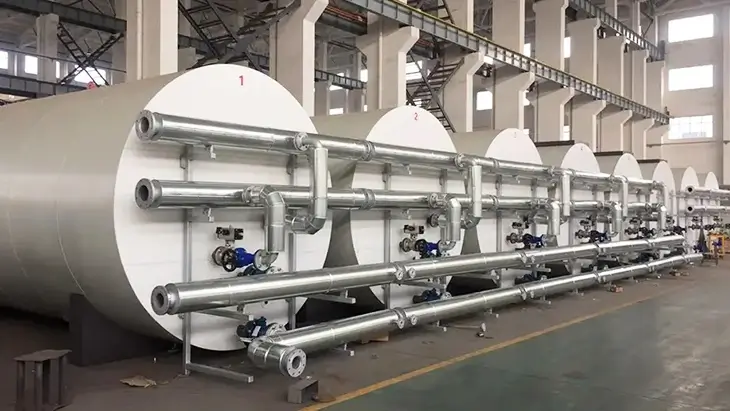

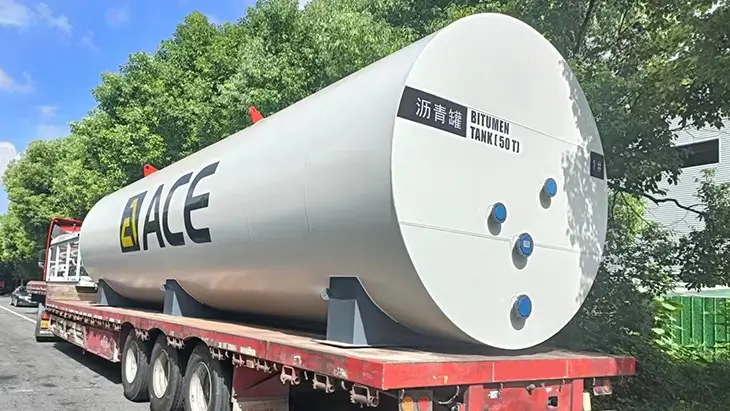

Horizontal Bitumen Tank

  • Model: 20 ~ 50
  • Capacity: 20 ~ 50m³

Improve your bitumen heating with our versatile horizontal bitumen storage tank, offering thermal oil, electric, and direct burner options. It includes a storage unit with insulation, oil burner, built-in combustion chamber, flues, oil heating coil, mixer, bitumen pump, oil circulating pump, expansion slot, bitumen and oil temperature displays, pump preheat system, pressure relief system, ladder, power distribution box, and optional discharge device, etc.

Get Price

Working Principle of Horizontal Bitumen Tank

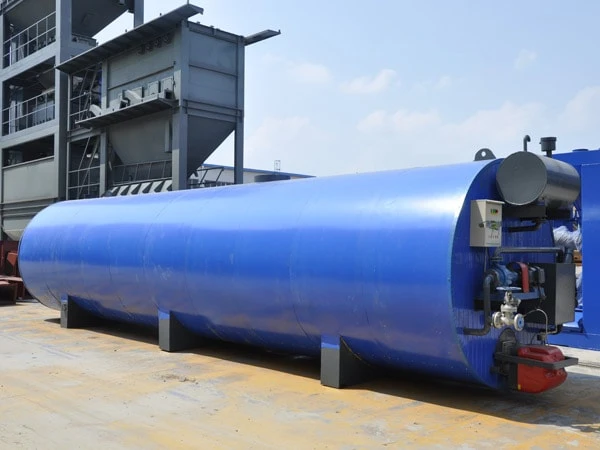

The working principle of a horizontal asphalt tank involves the utilization of a heating system to maintain and control the temperature of the stored bitumen. The tank typically consists of a horizontal structure equipped with a heating mechanism, often using thermal oil, electric heaters, or direct burners. That is, using the thermal oil furnace as heat resources and heating oil as heat medium, the oil circulating pump raises the bitumen to needed temperature.

Application Scope of Horizontal Bitumen Tank

There are two types of heating configurations for bitumen storage:
1. The overall heating type: This configuration is suitable for large bitumen storage facilities.
2. The overall and partial integrated heating type: This configuration, which includes both overall (complete) and partial integration of heating systems, is suitable for small and medium-sized bitumen storage facilities or an asphalt plant.

Main Parameters

Model 20 30 40 50
Dimensions (mm) 5500*2250*2485 9500*2250*2485 11700*2250*2485 10400*2800*3010
Tank Wall Thickness (mm) 5 5 5 5
Insulation Material Rock Wool 80K Rock Wool 80K Rock Wool 80K Rock Wool 80K
Insulation Thickness (mm) 50 50 50 100
Weight (kg) 5500 6000 6500 7200
Heating Method Direct Heating, Electric Heating, Thermal Oil Heating
Standard Accessories:
Level Indicator Mechanical Mechanical Mechanical Mechanical
Thermometer Mechanical/Electronic Mechanical/Electronic Mechanical/Electronic Mechanical/Electronic
Ladder Available Available Available Available
Platform As Required As Required As Required As Required
Manhole Available Available Available Available
Optional Accessories:
Pre-assembled Pipeline As Required As Required As Required As Required
Valves and Accessories As Required As Required As Required As Required
Mixer (kW) 5.5 5.5 5.5 5.5
*More models can be customized according to user requirements.

Characteristics of Horizontal Bitumen Tank

1. Efficient and Eco-friendly Combustion
Incorporating a globally renowned brand of fuel burner, the horizontal bitumen storage tank achieves high combustion efficiency and environmental friendliness.

2. Stable Combustion
Ensures thorough and stable combustion, guaranteeing the quality of bitumen heating in the tank.

3. Automatic Temperature Control
Our horizontal storage tanks allow for pre-set target temperatures; the machine automatically heats to the set temperature, shuts down automatically upon reaching it, and restarts heating when the temperature decreases.
