A wet mix plant is a set of equipment for road sub-base construction. A wet mix macadam plant adopts a pugmill to homogenize aggregate / crushed stones, water and cement power together, producing a mix called cement-bound material (CBM). It is also name as WMM plant, wet mix macadam plant, and the like. Typically, a wet mix plant works with an asphalt plant to produce material mix for road pavement.

With prices ranging from USD48,500 to USD65,000 , a WMM plant is not so expensive compared with other road construction machinery. Many road contractors choose to buy a wet mix macadam plant for their road construction projects. Daily operation costs and maintenance costs are very low. Therefore, the return on investment of a wet mix plant is very fast and many road contractors start their business from it.

wet mix plant structure and components

Typically, a wet mix plant is consisting of 7 components:
1. Aggregate Feeding System
4 / 5 /6 feeder bins, with VFD discharge belt conveyors and a collection belt conveyor and a weight scale, etc. Its main function is: weighing and batching aggregate; VFD motors can regulate feed rate according to the actual recipe.
2. Inclined Belt Conveyors
B500 belt conveyor, width @500mm, transport the already weighed aggregate to pugmill mixer. 3. Pugmill Mixer
Twin-shaft pugmill mixer. Driven by two asynchronous motors, the two shafts rotate in different direction.
4. Cement Silo
For storage cement powder, with screw conveyors to transport cement to pugmill.
5. Water Tank
For storage and supply water to pugmill, with scale, pump and pipes.
6. Finish Mix Storage Bin
A overhead bin for temporary storage of finish mix. It can discharge finish mix to a truck via a pneumatic door.
7. Control Room

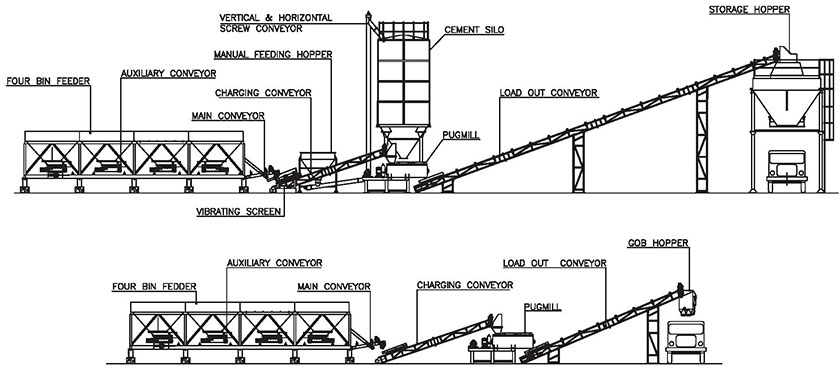

Control Room is also called MCC, that is main control cabinet, where power distribution unit, PLC control units and other office furniture are deployed for operation of the plant. Detail structure of a WMM plant is shown in the above picture.

New WMM plants for sale, 16 listings

New Ones For Sale

200t/h wet mix plant for sale

WBC200 Wet Mix Macadam Plant Price

Serial Number: LY5040 - WDT300
Model: WBC200
Production Capacity: 200 ton per hour
Aggregate Feeding System: 3 bins, 7m³ each
Pugmill Mixer Volume: 2m³
Control Mode: Auto /Manual
Water Tank Capacity: 5 m³
Cement Storage Capacity: 50 ton
Finished Silo Volume: 4 cubic meter

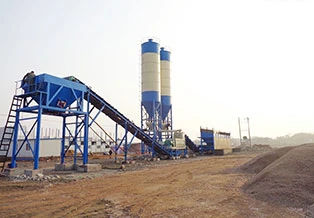

300t/h WMM plant for sale

WBC300 WMM Plant for sale

Serial Number: LY5040 - WDT300
Model: WBC300
Production Capacity: 300 ton per hour
Aggregate Batcher: 4 bins, 7m³ each
Pugmill Mixer Volume: 2m³
Control Mode: Auto / Manual,switchable
Water Tank Capacity: 5 m³
Cement Silo Capacity: 50 ton
Finished Silo Volume: 4 cubic meter
400t/h WMM plant for sale

WBC400 Wet Mix Macadam Plant Price

Serial Number: LY5040 - WDT400
Model: WBC400
Production Capacity: 400 ton per hour
Aggregate Feeder: 4 bins, 7m³ each
Pugmill Mixer Volume: 2.5m³
Control Mode: Auto / Manual,switchable
Water Tank Capacity: 5 cubic meter
Cement Silo Capacity: 50ton x 2
Finished Silo Volume: 7 cubic meter
500t/h wet mix production station costs

Wet Macadam Mixing Station Price

Serial Number: LY5040 - WDT500
Model: WBC500
Production Capacity: 500 ton per hour
Aggregate Feeder: 5 bins, 8m³ each
Pugmill Mixer Volume: 3m³
Control Mode: Auto / Manual,switchable
Water Tank Capacity: 8 cubic meter
Cement Silo Capacity: 50ton x 2
Finished Silo Volume: 7 cubic meter

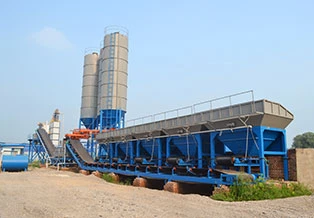

600t/h WMM production plant price

WBC500 Wet Macadam Mixing Station Price

Serial Number: LY5040 - WDT600
Model: WBC600
Production Capacity: 600 ton per hour
Aggregate Feeder: 5 bins, 8.5m³ each
Pugmill Mixer Volume: 4m³
Control Mode: Auto / Manual,switchable
Water Tank Capacity: 10 cubic meter
Cement Silo Capacity: 50ton x 2
Finished Silo Volume: 7 cubic meter

Wet Mix Macadam Plant Price lists of 2021

Production Capacity EXW Price Comments
200 t/h $48,500 Detachable cement silo /horizontal rectangle cement storage silo available.
300 t/h $51,500 Detachable cement silo /horizontal rectangle cement storage silo available.
400 t/h $52,500 Detachable cement silo /horizontal rectangle cement storage silo available.
500 t/h $61,500 Detachable cement silo /horizontal rectangle cement storage silo available.
600 t/h $63,500 Detachable cement silo /horizontal rectangle cement storage silo available.

Wet Mix Macadam Plants Sales in the world

As a leading and professional road construction equipment manufacturer in China, Liaoyuan Machinery has been engaged in design, manufacture and sales of wet mix plant for nearly 20 years. Proven quality and competitive prices win clients trust from all over the world. As of 2020, Liaoyuan’s wet mix plants sales and exported to 40 countries, such as Chile, Paraguay, Uruguay, Peru, Indonesia, Brazil, Russia, Nigeria, Mexico, Egypt, Columbia, Indonesia, Malaysia, Thailand, Myanmar, Ethiopia, Saudi Arabia, Iraq, Uzbekistan, Kazakhstan, Russia, Ethiopia, Kenya, Algeria, Madagascar, etc.
