Portable Concrete Plant for Sale

  • Model: YHZS40 ~ YHZS80
  • Product Capacity: 40 m³/h ~ 80 m³/h
  • Total Power: 75 kw~ 110 kw
  • Highlights:
    YHZS portable concrete plant is integrated on a towable chassis and the entire plant can be mobilized by one tractor, relocation is quite easy and fast.
  • Leave Message

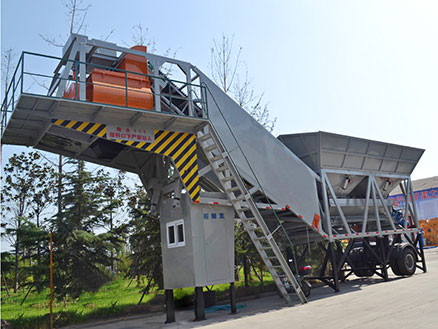

    Brief Introduction of Portable Concrete Plant
    This series of concrete batching plant is composed of concrete mixer, batching system, weighing system, cement silo, screw conveyor and other indispensable mixing equipment. All the equipment is installed at the chassis of the transportation trailer.This series of mixing plant adopts modular design, convenient and fast installation. It only takes three days from installation to use. Control room, test cabinet, maintenance room are all ready.
    Technical Parameters of Portable Concrete Plant
    Model YHZS40 YHZS50 YHZS60 YHZS80
    Capacity (m3/h) 40 50 60 80
    Mixing Time (s) 60 60 60 60
    Max Aggregate Size (mm) 60/80 60/80 60/80 60/80
    Discharging Height (mm) 3800 3800 3800 3800
    Total Power (kW) 75 84 90 110
    Total Weight (Ton) 17 19 20 32
    Total Dimensions (m) 15×41.5×7.8 16×41.5×7.9 17.5×41.5×8.1 19×42×8.3
    Features of Portable Concrete Plant

    1.The entire plant is integrated on a towable chassis which make it quite easy to mobile, relocation takes even just a few hours.
    2. Accurate weighing, adopt international famous brand load cells and intruments, dynamic weighing accuracy is ±1%.
    3. The pneumatic conveying unit obtained the national patent has been used to weigh and convey additive, thus totally avoid producing bad quality concrete due to the inappropriate admixture amounts.
    4. It is equipped with touch screen, computer, three operation mode(manual, semi-auto and auto) to make the system perform reliably and easy to operate.
