Brief Introduction

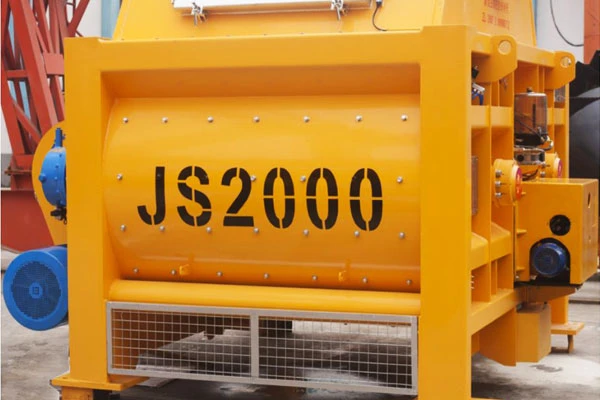

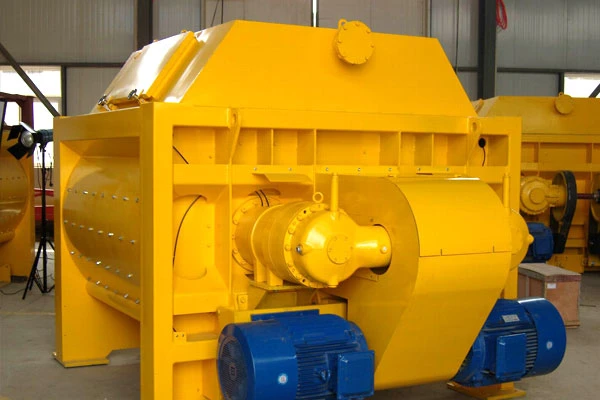

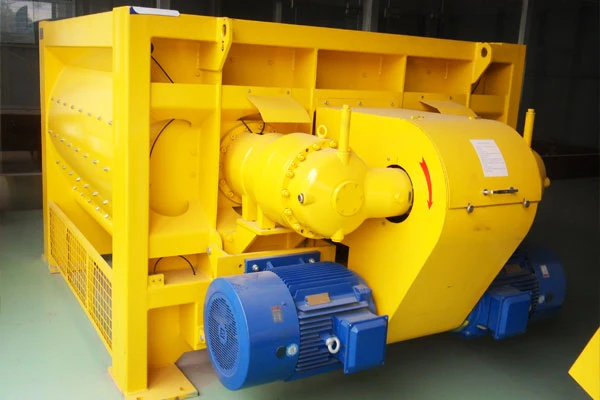

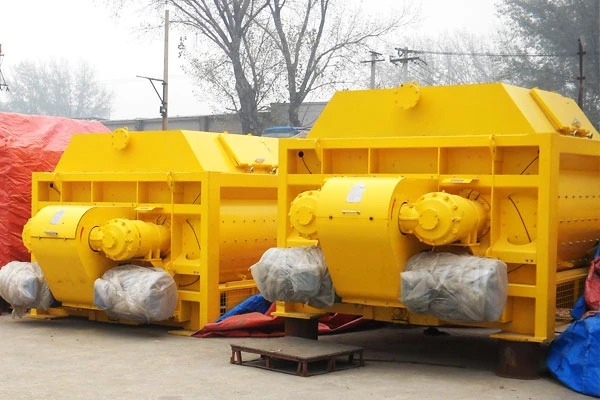

JS series concrete mixer is twin horizontal shafts forced mixer. Combining advantages of single unit stand-alone operation and simple concrete batching plant with PLD series batching machine, the unit can work in concrete mixing station for prefabricated-component factories of various sizes and construction of highway, bridge, water, conservation and dock, etc. It can mix no-slump concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortar, as a widely used high efficiency model.
The series products are reasonable in structure, novel in layout and convenient in operation and maintenance. The height of supporting legs is designed as 1500-4500mm for JS350-3000. Tipper car, self-dumping truck and mixer truck can be used by user. The product can be customized upon user's requests.
Product Parameters
Model | JS1000B | JS1500B | JS2000 | JS3000 |
Discharge volume | 1000L | 1500L | 2000L | 3000L |
Charging volume | 1600L | 2400L | 3200L | 4800L |
Theoretical capacity | ≥60m³ | ≥90m³ | ≥120m³ | ≥180m³ |
Aggregate sizes | ≤60/80mm | ≤80/100mm | ≤80/100mm | ≤80/120mm |
Working circle | 60s | 60s | 60s | 60s |
Mixing speed | 24.5r/min | 24.5r/min | 24.5r/min | 21r/min |
Mixing arm quantity | 2×6 | 2×6 | 2×8 | 2×10 |
Mixing motor model | Y25M-4 | Y280M-6 | Y280M-6 | Y315S-6 |
Mixing motor power | 2×18.5 kW | 2×30 kW | 2×37 kW | 2×55 kW |
Dimension (mm) | 3000×2200×2020 | 3000×2400×2074 | 3000×2400×2150 | 3000×2680×2450 |
Overall weight (kg) | 5500 | 6500 | 7500 | 9200 |
Main Features
1. This concrete mixer uses high-chromium and high-molybdenum scale boards and stirring pieces, with a long service time.
2. Shaft seal is applied with patented air pressure seal, which can effectively prevent the leakage of mortars.
3. Opening gates mechanism directed by hydraulic can adjust the opening angle of discharging door in accordance with the need, which effectively prevents overspill while discharging the finished materials into truck-mounted concrete mixers.
